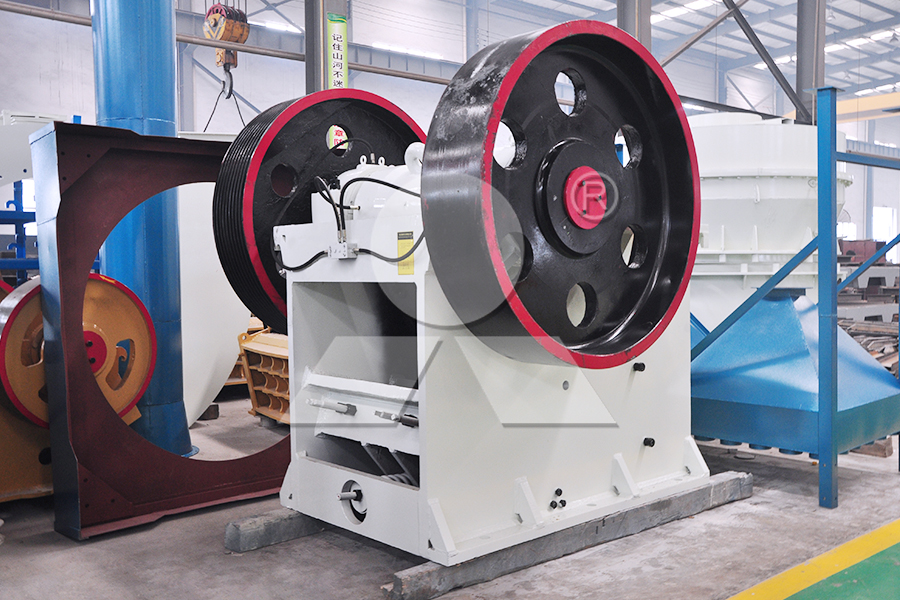

Jaw crushers are essential equipment in mining, construction, and aggregate production industries, known for their ability to crush hard materials into manageable sizes. A critical aspect of their operation is adjusting the discharge size, which directly affects the final product quality and processing efficiency. This guide will walk you through the steps to effectively adjust a jaw crusher’s discharge size to 0-50mm.

1. Understanding Discharge Size in Jaw Crushers

The discharge size of a jaw crusher refers to the size of the crushed material that exits the crusher after processing. This size is determined by the gap between the fixed jaw plate and the movable jaw plate. Adjusting this gap allows operators to control the size of the output material, which is crucial for meeting specific project requirements, especially in industries like cement production, mining, and road construction.

2. Methods for Adjusting Discharge Size

There are several ways to adjust the discharge size of a jaw crusher, depending on the machine model and manufacturer. Here are the most common methods:

a) Shim Adjustment Method

This is one of the simplest and most traditional methods. Shims are thin metal plates inserted between the toggle plate and the frame.

• How to adjust:
  • Stop the machine and ensure it’s powered off.
  • Loosen the tension rod to relieve pressure.
  • Add or remove shims to adjust the size of the discharge opening.
  • Tighten the tension rod and restart the machine.
• Application: Best for older models or smaller crushers.

b) Wedge Block Adjustment Method

This method uses a set of wedge-shaped blocks to adjust the discharge gap.

• How to adjust:
  • Loosen the locking bolts on the wedge block system.
  • Slide the wedge block forward or backward to increase or decrease the discharge size.
  • Tighten the bolts once the desired gap is set.
• Application: Common in modern jaw crushers due to its precision and ease of use.

c) Hydraulic Adjustment Method

Advanced jaw crushers are often equipped with hydraulic systems for easier and faster adjustments.

• How to adjust:
  • Use the hydraulic control system to adjust the discharge size.
  • Simply increase or decrease the hydraulic pressure to adjust the gap accordingly.
• Application: Ideal for heavy-duty crushers that require frequent size adjustments.

3. Factors to Consider When Adjusting Discharge Size

When setting the jaw crusher to achieve a discharge size of 0-50mm, it’s essential to consider:

• Material hardness: Harder materials may require a wider discharge to prevent machine damage.
• Feed size: Larger feed sizes need more gradual reduction to avoid overloading the crusher.
• Production capacity: A smaller discharge gap results in finer material but can reduce overall output.

4. Tips for Maintaining Optimal Discharge Size

To ensure consistent output and prolong the lifespan of the jaw crusher:

• Regularly inspect wear parts, especially the jaw plates and toggle plates.
• Lubricate moving parts as per the manufacturer’s guidelines.
• Monitor and adjust the discharge size routinely based on production needs.
• Check for unusual noises or vibrations during operation, which could indicate improper adjustment.

5. Common Issues When Adjusting Discharge Size

• Blockages: Caused by incorrect gap settings or oversized feed materials.
• Uneven wear: May occur if the discharge size is not adjusted properly, leading to premature wear of jaw plates.
• Reduced capacity: A discharge gap that is too narrow can decrease the crusher’s throughput.

Conclusion

Adjusting the discharge size of a jaw crusher to 0-50mm is a vital process for ensuring optimal material output and maintaining operational efficiency. Whether using shims, wedge blocks, or hydraulic systems, regular adjustments and maintenance will help maximize productivity and extend the lifespan of the equipment. By following the methods outlined in this guide, you can ensure your jaw crusher operates at peak performance.
