In the mineral processing and aggregate production chain, the primary crushing stage is the most critical. It handles the raw, “run-of-mine” (ROM) material, often consisting of massive, hard boulders. For decades, the Jaw Crusher has remained the industry standard for this role.

At Henan Liming Heavy Industry, our PE and PEW series jaw crushers are engineered to withstand the harshest mining environments while delivering maximum throughput. Here is why the jaw crusher is the undisputed leader in primary crushing.

1. Exceptional “Bite” for Large Feed Sizes

The primary task of a jaw crusher is to reduce large rocks into a size manageable for secondary crushers (like cone or impact crushers).

• Deep Crushing Cavity: Jaw crushers feature a deep, symmetrical crushing chamber with no “dead zones.” This design allows it to accept massive feed sizes (up to $1000$ mm or more depending on the model).
• High Reduction Ratio: With a typical reduction ratio of 4:1 to 6:1, a single pass through a jaw crusher significantly simplifies the downstream processing line.

2. Superior Handling of Hard and Abrasive Materials

Mining often involves materials like granite, basalt, quartzite, and iron ore—rocks that are incredibly hard and highly abrasive.

• Compression Technology: Unlike impact crushers that use high-speed strikes (which lead to rapid wear on abrasive rock), jaw crushers use compressive force.
• Wear-Resistant Components: Our jaw plates are cast from high-manganese steel alloys. Because the crushing motion is a slow, steady squeeze, the wear life of the liners is significantly longer than in other types of primary equipment.

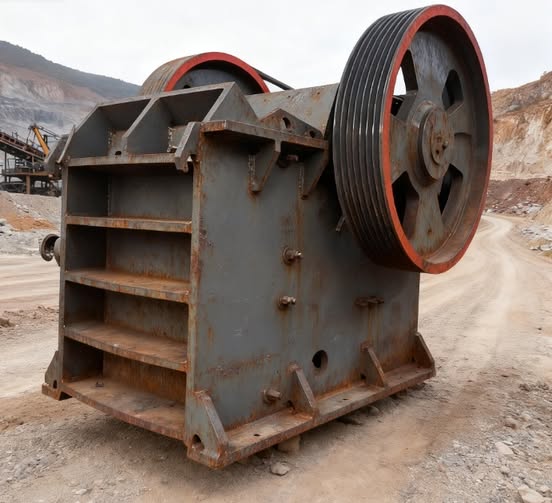

3. Simple Structure and High Reliability

In remote mining sites, equipment failure translates to massive financial losses. The mechanical simplicity of the jaw crusher is its greatest asset.

• Few Moving Parts: The design consists primarily of a frame, an eccentric shaft, a flywheel, and jaw plates. This simplicity makes it inherently robust.
• Easy Maintenance: Even in the field, jaw plates can be rotated or replaced with minimal specialized tools. Our PEW European Series also features a hydraulic wedge adjustment system, allowing operators to change the discharge size in minutes without manual labor.

4. Operational Versatility and Flexibility

Whether you are operating a stationary gold mine or a mobile limestone quarry, the jaw crusher adapts to your needs.

• Adjustable Discharge (CSS): Operators can easily adjust the Closed Side Setting (CSS) to control the output size, ensuring the secondary crusher is fed with perfectly sized material.
• Mobile Integration: Because of its compact footprint relative to its power, the jaw crusher is the most common primary unit found on mobile crushing stations.

5. Technical Comparison: Why Jaw Over Others?

Feature	Jaw Crusher	Gyratory Crusher	Impact Crusher (Primary)
Material Hardness	All (Soft to Extra Hard)	Hard/Abrasive	Soft to Medium-Hard
Maintenance	Very Easy	Complex/Costly	Frequent (for hard rock)
Initial Investment	Moderate	Very High	Moderate
Moisture Content	Handles wet/sticky well	Can clog	Handles wet well

6. The Liming Advantage: Engineering Excellence

As a direct factory manufacturer, Henan Liming Heavy Industry enhances the traditional jaw crusher design with modern innovations:

• Heavy-Duty Rotors: Larger, counter-balanced flywheels that reduce vibration and energy consumption.
• V-Shaped Chamber: An optimized crushing angle that increases the “bite” frequency and prevents material bridging.
• Integrated Motor Support: Reduces the footprint and simplifies the foundation requirements.

Conclusion: The Foundation of Mining Success

The Jaw Crusher remains the backbone of primary crushing because it offers the perfect balance of power, simplicity, and cost-effectiveness. By choosing a high-quality jaw crusher, mining operators ensure a stable, continuous flow of material, protecting their secondary equipment and maximizing their Return on Investment (ROI).
