SV Hyper-Energy Exciter, G-force

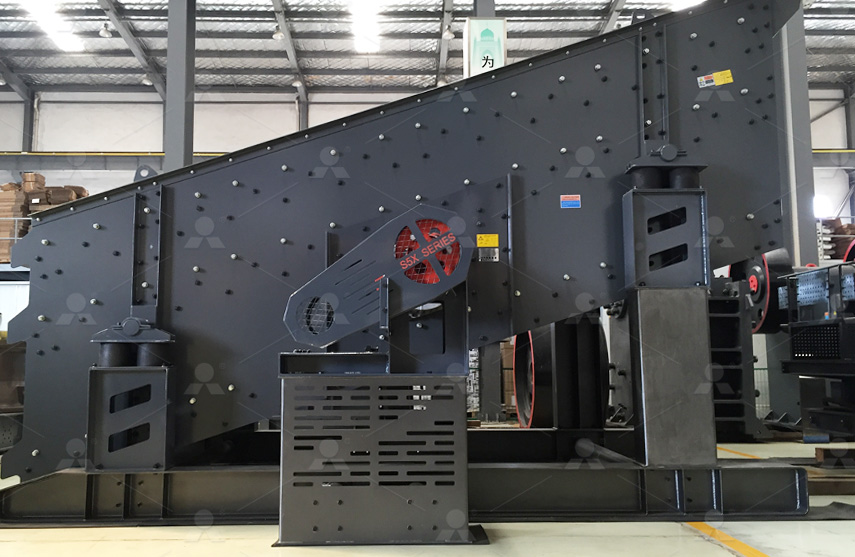

S5X Series Vibrating Screen is new equipment made in Liming Heavy Industry, and it is particularly suitable for heavy type, medium type and fine type, etc. screening work. This machine adopts SV Hyper-Energy Exciter, which makes screening efficiency improved.

Applications: Construction aggregates, metal mining, coal mining, chemical engineering, material recycling and etc.

Working Principle

S5X vibrating screen is mainly composed of screen box, spring support groups, bearing, vibrators, transmission, motor, transmission bearings and other components. S5X vibrating screen is a machine supported by springs , block eccentric vibration as the exciter source and generated excitation force by the rotation of the eccentric , So that the screen box circumferential consequent reciprocation. The material on the inclined sieve surface successive approximation in round bouncing tumbling motion, by repeatedly comparing with mesh, smaller than the mesh size of the material through the sieve, larger than the screen hole size of materials still on the screen mesh, thereby completing the screening process.

Specifications – Technical Data
