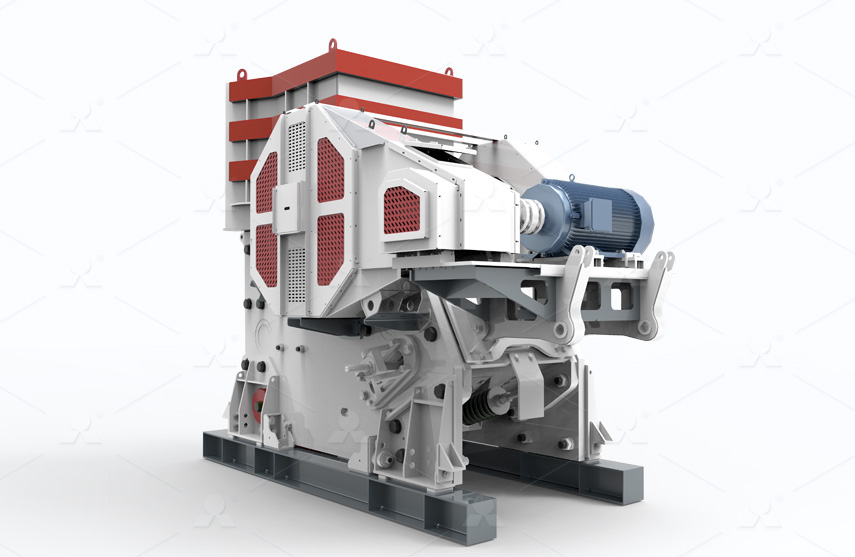

Our company is the world’s leading manufacturer of rock and mineral processing equipment. Since the end of the 20th century, it has installed tens of thousands sets of crushing equipment around the world. After the C6X series jaw crusher, the company has launched another C5X Series jaw crusher which is masterpieces of low-cost and high-efficiency jaw crusher.The whole machine has better reliability, adapts to various working conditions and environments, and is equipped with safety protection plates. Users can choose reasonable options: safety shields, feed hoppers, hydraulic tools and fully automatic lubrication systems.

Applications: This crusher is mainly used in industrial sectors such as metallurgy, mining, chemical industry, cement, construction, refractory materials and ceramics. It is an equipment that can be used for coarse and medium

Working Principle

Input dynamic by motor, the pulley drives eccentric shaft to make the movable jaw move upwards and downwards with SPC belt. When the movable jaw moves forth toward the fixed jaw, materials in the crushing cavity will be squashed or chopped. And then the movable jaw travels back, the chopped or squashed materials which met the requirements will be discharged from the outlet. Since the motor keeps working, the crusher will crush and discharge periodically to achieve mass production.

Specifications – Technical Data
