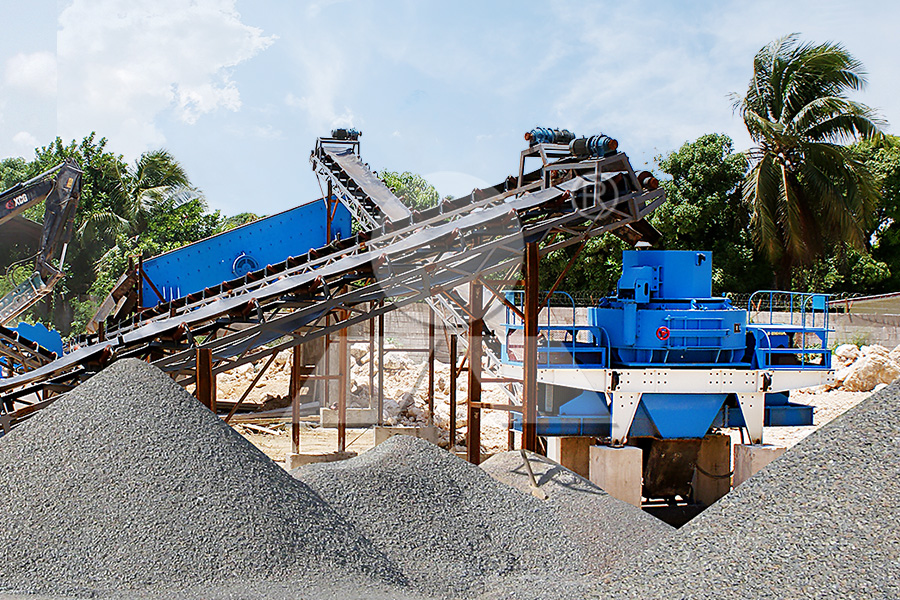

In modern construction, the demand for high-quality manufactured sand (M-Sand) is rapidly increasing. The Vertical Shaft Impact (VSI) crusher has become the cornerstone equipment for producing sand with an ideal shape and gradation. However, simply adding a VSI crusher to a production line is not enough; its configuration is paramount to achieving efficiency, product quality, and profitability. This guide provides expert configuration advice for integrating a VSI crusher into your sand production line.

1. The Central Role of the VSI Crusher in the Sand Making Process

The VSI crusher is typically positioned at the end of the crushing circuit, serving as the sand-making or tertiary crushing stage. Its primary function is not just size reduction, but more importantly, shaping the final product. It transforms the cubical but often rough aggregate from cone crushers into well-shaped, fine aggregate that meets strict standards for concrete and asphalt.

2. Key Configuration Parameters for Optimal Performance

To unlock the full potential of your VSI crusher, pay close attention to these critical configuration parameters:

• Rotor Speed and Type: This is the most crucial setting.
  • High Rotor Speed: Generates more energy for impact, resulting in finer sand and better shaping. Ideal for producing standard concrete sand.
  • Low Rotor Speed: Produces a coarser product, suitable for plastering sand or when a specific coarse sand fraction is required.
  • Rotor Type: Choose between open table or enclosed rotor designs based on the abrasiveness of your feed material.
• Feed Size and Gradation: The VSI crusher performs best with a consistent and controlled feed.
  • Ideal Feed Size: Typically, a well-graded 0-40mm material from a cone crusher is optimal.
  • Avoid Uncrushables: Ensure effective pre-screening to remove metal and other uncrushable objects that can damage the rotor and anvils.
• Cascade Feed System and Bi-Flow Configuration:
  • Utilize the Cascade: Most modern VSI crushers have a cascade feed system that creates a protective “rock shelf” inside the crushing chamber. This significantly reduces wear on the rotor and internal components.
  • Bi-Flow Option: This allows material to be fed both into the rotor and into the crushing chamber via the cascade, offering greater flexibility for different materials and wear management.

3. Recommended Circuit Design: Closed-Circuit is a Must

For a controlled and efficient sand production process, operating the VSI crusher in a closed-circuit is highly recommended.

• The Setup: The output from the VSI crusher is sent to a vibrating screen.
• The Process: The screen separates the sand into oversize, desired product, and undersize (fines). The oversize material is recirculated back to the VSI crusher for further crushing and shaping.
• The Benefit: This ensures that all output meets the desired grain size distribution, maximizes the production of in-spec product, and provides excellent control over the fineness modulus of the final sand.

4. Integration with Upstream and Downstream Equipment

A VSI crusher does not work in isolation. Its performance depends on the entire production line.

• Upstream: Cone Crusher: A well-configured cone crusher is the perfect partner. It provides a consistent, cubical feed material, which allows the VSI to focus on shaping and fine-tuning rather than primary size reduction.
• Downstream: Air Classifier or Sand Washer: For ultra-high-quality sand, consider adding an air classifier to remove excess fines or a sand washer to reduce clay and silt content, further enhancing the product’s value.

Conclusion

Properly configuring a VSI crusher within your manufactured sand production line is the key to producing a consistent, high-value product that commands a premium price. By focusing on rotor speed optimization, ensuring a stable and suitable feed, and implementing a closed-circuit design with a screen, you can maximize sand yield, control particle shape, and achieve a low cost per ton. Treat the configuration as a strategic investment, and your VSI crusher will become the most profitable asset in your aggregate plant.
