In gold mining metallurgy, framing the selection between a jaw crusher and a cone crusher as a binary choice is a fundamental plant design error. Hard rock gold ore—typically hosted in quartzite, granodiorite, or highly siliceous pyrite matrices—presents extreme Mohs hardness and high abrasiveness (Bond Work Index variations). From a comminution standpoint, these machines are not mutually exclusive alternatives; they are strictly complementary stages within a standard multi-stage reduction circuit. Optimizing this circuit is the absolute prerequisite for maximizing recovery in the downstream leaching or flotation stages.

Primary Crushing: Structural Physics and Compressive Mechanics

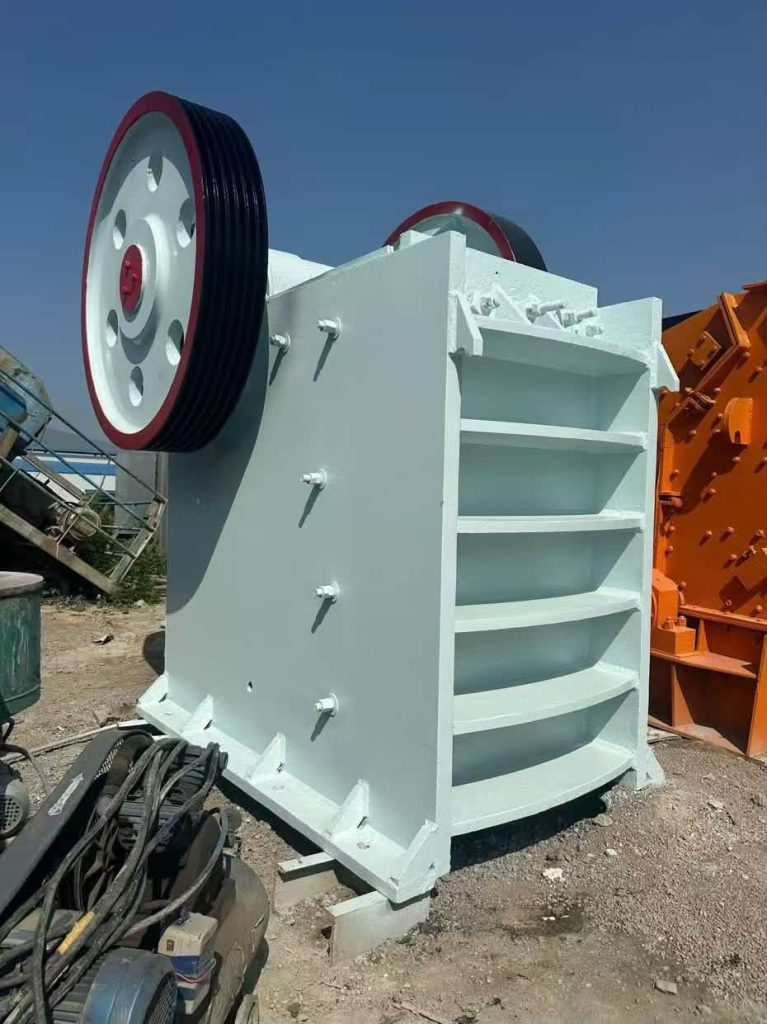

The primary comminution phase must handle run-of-mine (ROM) ore, prioritizing massive intake capacity and the initiation of macro-fractures. For this, the PE Series or the integrated NK Series Primary Mobile Jaws (such as the NK75J or NK100E featuring the PE3040) are deployed.

Gold ore fragmentation at this stage relies on pure compression mechanics. As the pitman drives the moving jaw against the stationary plate, the massive compressive forces overcome the tensile strength of the solid quartz matrix. This coarse reduction stage is critical not just for sizing down the top size, but for breeding micro-fractures along crystalline grain boundaries, setting the structural baseline for downstream processing.

Secondary and Tertiary Reduction: Inter-Particle Laminating Crushing

Once the primary jaw has breached the structural integrity of the ore, the material is fed to the secondary and tertiary stages, where the HPT/HST Series Cone Crushers (or the NK300H secondary mobile unit equipped with the HPT300) take over.

Cone crushers are essential here due to their kinematic design. Rather than direct, abrasive impact, the HPT series utilizes inter-particle laminating crushing. The material is compressed against itself within the crushing chamber. This phenomenon is vital for gold ore: it significantly mitigates the extreme wear on manganese liners caused by high silica content, while simultaneously generating a finer, more cubical product profile. Handling the sheer Mohs hardness of gold-bearing rock at high throughputs is economically viable only through this laminating action.

Closed-Circuit Balancing and Ball Mill Optimization

The ultimate objective of the crushing circuit is to prepare the optimum P80 feed size for the grinding phase. This requires rigorous closed-circuit balancing. The cone crusher must operate in a synchronized loop with vibrating screens (such as the SKX series). Oversize material is recirculated, ensuring that strictly controlled, finely crushed ore enters the ball mill or SAG mill. By maximizing the reduction ratio in the crushing phase—where energy consumption per ton is vastly lower than in tumbling mills—the solution architecture eliminates bottlenecking, prevents mill overloads, and maximizes the liberation kinetics of the encapsulated gold particles.

Technical Diagnostic FAQ

Which is more suitable for crushing gold ore: a jaw crusher or a cone crusher? They are sequentially interdependent. The jaw crusher is exclusively suited for primary, coarse reduction of large run-of-mine ore, while the cone crusher is mandatory for secondary and tertiary fine reduction to prepare the ore for milling. How does the HPT Cone Crusher handle the high abrasiveness of quartz-hosted gold ore? The HPT series relies on inter-particle laminating crushing. By forcing the rock particles to crush against one another rather than solely against the mantle and bowl liner, it drastically reduces direct abrasive wear, extending the lifecycle of the internal metallurgical wear parts. Why is closed-circuit configuration critical for gold ore? A closed-circuit setup with a cone crusher and screening unit strictly controls the maximum particle size exiting the crushing plant. A finer, perfectly calibrated feed directly lowers the energy draw of the ball mill and increases the overall throughput of the gold extraction plant.
