Puzzolana Jaw Movable Stone Crusher: Engineered for Efficiency and Mobility

The Puzzolana jaw movable stone crusher represents a specific category within the Indian manufacturer Puzzolana Machinery Fabricators’ extensive range of crushing and screening equipment. It is not a single model, but rather a design concept combining a robust primary jaw crusher with integrated mobility. This configuration is engineered to deliver high-capacity primary crushing directly at the source material, such as quarry sites, demolition locations, or mining operations, thereby significantly reducing material haulage costs.

Core Design and Operational Basis

The system’s effectiveness stems from the integration of two key components:

1. Puzzolana Jaw Crusher: At its heart is a Puzzolana single-toggle or double-toggle jaw crusher, known for features like:
   • Heavy-Duty Roller Bearing Design: This provides greater load-bearing capacity and reliability compared to plain bearings, a documented design philosophy in Puzzolana’s stationary crushers.
   • Crushing Chamber Geometry: The chamber is designed for high capacity and efficient nip-angle, promoting effective compression crushing of hard rock, basalt, and granite.
   • Robust Eccentric Shaft: Built to withstand continuous high inertia forces, ensuring stable operation under full load.

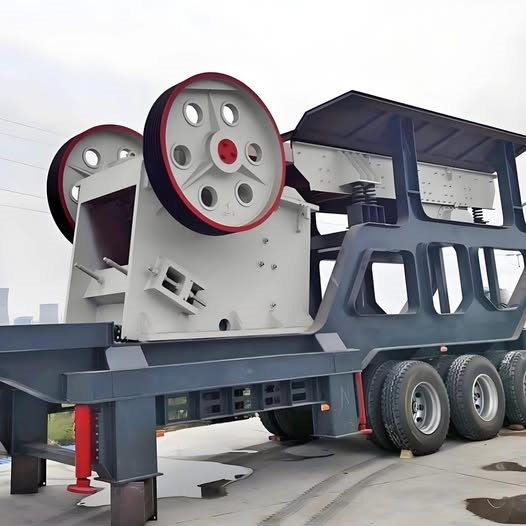

2. Movable (Semi-Mobile) Chassis: The jaw crusher is mounted on a heavy-duty mobile platform. This typically includes:
   • Multi-axle bogie with pneumatic tyres or crawler tracks for on-site relocation.
   • A sturdy support structure to maintain stability during crushing operations.
   • Integrated walkways, access platforms, and safety handrails compliant with industrial standards.

Key Performance Characteristics (Based on Published Specifications)

Analysis of Puzzolana’s product literature for similar mobile integrated plants reveals consistent design goals for such movable jaw crushers:

• Rapid Setup and Mobility: The primary advantage is the ability to be transported in fewer modules or as a single unit (depending on size) and be operational quickly compared to fixed plant installation. This reduces site preparation time.
• Direct Feed Efficiency: By moving the primary crusher close to the excavation face, it eliminates the need for dumpers to transport raw feed over long distances to a fixed plant, offering substantial fuel and logistics savings.
• Adaptability: The movable unit can be repositioned periodically within a large quarry or moved between different sites as projects are completed, maximizing asset utilization.
• Downstream Flexibility: The crushed product from the movable jaw unit can be fed via conveyor to secondary/tertiary modules or directly to screening units, forming part of a complete mobile crushing circuit.

Typical Applications in Material Processing

This equipment is deployed in scenarios where operational flexibility and reduced truck cycle times are critical:

• Large-Scale Quarrying: Sequential advancement of the primary crushing point following the quarry face.
• Contract Crushing: Contractors requiring equipment that can be moved between multiple job sites.
• Mining Pre-Crushing: Reducing run-of-mine material size at the pit before conveying to processing plants.
• Major Infrastructure Projects: Crushing excavated rock (like river gravel or demolished concrete) on-site for reuse as sub-base material.

Considerations for Deployment

While offering clear logistical benefits, practical deployment involves several factors:

• Feed System: Requires a front-end loader or excavator for direct feeding into the crusher hopper.
• Site Terrain: The site must be prepared to allow stable positioning and safe access for the mobile unit and feeding equipment.
• Output Handling: A coordinated system of mobile conveyors or stackers is needed to handle the crushed output.

In summary, the Puzzolana jaw movable stone crusher is a purpose-built solution that applies proven stationary crusher technology within a mobile framework. Its design rationale focuses squarely on reducing operating costs associated with material transport and increasing operational flexibility in dynamic project environments. Its specifications and applications align with established industry practices for semi-mobile crushing systems.
